Item # 002-0803-000-KIT

DPDT Push-Push Button Switch Kit For Fender® Deluxe Player, Jeff Beck and Elite Strat®

DPDT push-push button switch kit as installed in the Fender Deluxe Player, Jeff Beck, American Elite Strat® and various other models that use this push button switching method.

This switch kit we offer consists of all parts depicted on the right.  If you do not have the original pickguard for this switch, your pickguard will require a 11/32" hole drilled in the correct location to accept the button switch tip. The plastic button switch tips are only available in the Aged White color as supplied with this kit. Wiring diagram and/or additional installation instructions other that what is described below are not available for this kit, you need to know what you are doing in order to correctly install and wire this kit in your guitar.

This switch mounting block is attached to the back side of the pickguard with a strong glue such as Devcon 22045. In the location where you are gluing the switch mounting block you will remove a small portion of the pickguard shielding, score the pickguard surface and scuff the mating surface of the switch mounting block for best adhesion. A 11/32" (0.343") diameter hole in your pickguard is required for this switch mounting block  to allow the switch tip to protrude through. A step bit is the best choice for drilling the hole in the pickguard and the 11/32" is one of the multiple  hole drilling diameters on the 1/8" - 1/2" step bit. The step bit is best for smooth drilling in the vinyl pickguards where as a single size drill bit is not recommended for it has a higher chance of damaging the pickguard.

This kit consists of the following Plain Packaged components:

002-0803-000 DPDT Switch
005-5193-000 Button Switch Tip, Aged White
003-8462-000 Switch Mounting Block
002-1404-049 Mounting Screws x 2

Price: $43.00 Per Kit

This electronic item does not qualify for return.

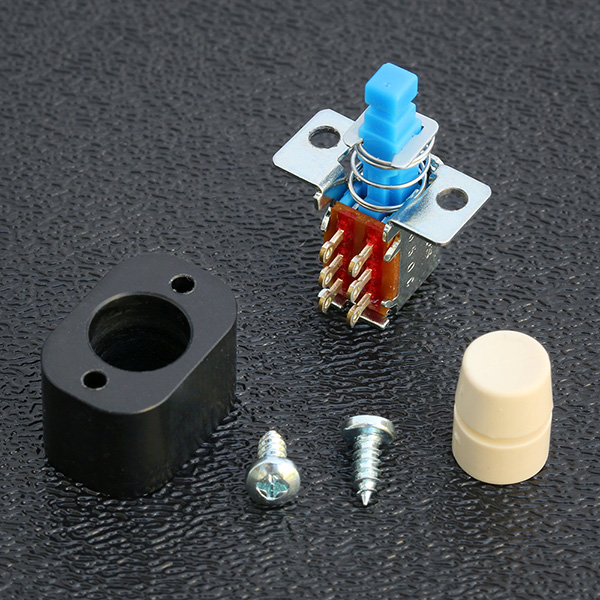

002-0803-000-KIT - Fender® Deluxe Player, Jeff Beck and Elite Strat® DPDT Push-Push Button Switch Kit
Click on above image for larger view

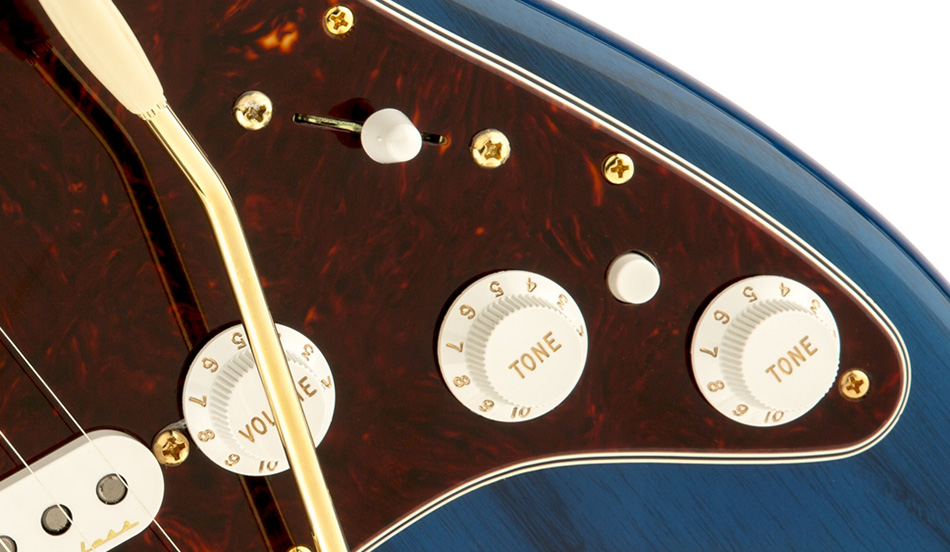

Above - Push button switch shown as installed on the Deluxe Player Strat.

Custom Fender Elite HSS Strat Pickguard
Above - Another implementation of this push button switch on one of our Elite Strat's with our custom Acrylic pickguard.
