Custom Pedal Board #1 (Personal Project - Not For Sale)

Pedals in the order as they are placed in the signal path.

• Voodoo Labs - Wahzoo
• Boss - CS-2 Compression Sustainer
• BYOC - Lazy Sprocket (Boss SG-1 Slow Gear Clone)
• GGG - Big Muff Clone (Rams Head Version)
• Robert Keeley - Fuzz Head
• Boss - DS-1 Distortion (Robert Keeley Modified)
• Boss - GE-7 Graphic Equalizer
• MXR - Custom Shop '74 Phase 90
• Voodoo Labs - Micro Vibe
• Electro Harmonix - Electric Mistress
• Boss - CE-2 Chorus (Robert Keeley Modified)
• Ernie Ball - Volume Pedal Jr.
• Boss - DD-7 Digital Delay
• Boss - RV-5 Digital Reverb

Pedal board material is 1/4" fiberglass for lower deck and 1/8" for upper deck, both have been painted flat black.  This fiberglass material is very strong and durable.  There is room for 1 pedal just above the volume pedal, but I think I pretty much have it covered for my wants and needs with the pedals shown.

All pedals powered by a pair of Voodoo Labs Pedal Power 2+ power supplies that are mounted underneath upper row of pedals.  All audio cabling was custom manufactured with Canare GS-6 cable.  Total cost, approximately $2370.00.

This pedal board is not for sale.  We do not manufacture these pedal boards for sale nor do we provide plans or documentation to build your own based on their design and construction.

Updated: November 13, 2010 @ 17:03

Pedals in the order as they are placed in the signal path.

• Ernie Ball - Wah
• MXR - Custom Comp
• Electro-Harmonix - Little Big Muff
• MXR - Custom Badass '78 Distortion
• MXR - Analog Chorus
• MXR - Micro Flanger
• MXR Script '74 Phase 90 (Custom modified for true bypass, LED and power input jack)
• MXR - Carbon Copy Analog Delay
• Electro- Harmonix - Holy Grail Plus Reverb

All pedals powered by a Voodoo Labs Pedal Power 2+ power supply.  All audio cabling was custom manufactured with Canare GS-6 cable.  Total cost, approximately $1400.00.

Pedal board material is 3/8" black ABS plastic, a very strong and durable material.

This pedal board is not for sale.  We do not manufacture these pedal boards for sale nor do we provide plans or documentation to build your own based on their design and construction.

Updated: October 15, 2011 @ 14:00

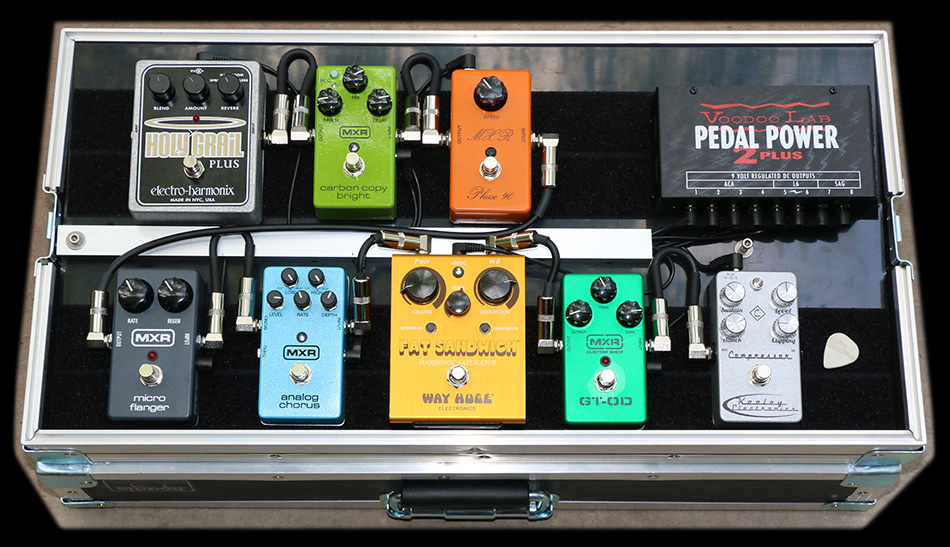

Pedals in the order as they are placed in the signal path.

• Keeley Electronics - 4 Knob Compressor
• MXR - Custom Shop GT-OD
• Way Huge - Fat Sandwich
• MXR - Analog Chorus
• MXR - Micro Flanger
• MXR Script '74 Phase 90 (Custom modified for true bypass, LED and power input jack)
• MXR - Carbon Copy Bright Analog Delay
• Electro- Harmonix - Holy Grail Plus Reverb

All pedals powered by a Voodoo Labs Pedal Power 2+ power supply.  All audio cabling was custom manufactured with Canare GS-6 cable.

When this board is run in front of my amp that has an effects loop the output of the Fat Sandwich goes straight into the main input of the amp and the input side of the MXR Analog Chorus goes into the effects loop Send and output side of the MXR Holy Grail Plus goes into the effects loop Return.  However, as it is setup now, the entire signal chain is placed in front of the amps mains input.

Pedal board material is 3/8" black ABS plastic, a very strong and durable material.

This pedal board is not for sale.  We do not manufacture these pedal boards for sale nor do we provide plans or documentation to build your own based on their design and construction.

Updated: May 7, 2016 @ 15:48
