Item # 003-8462-000

Switch Mounting Block For Fender® Deluxe Player, Jeff Beck and Elite Strat®

003-8462-000, 0038462000 DPDT Push-Push Switch Mounting Block

Switch mounting block for Fender's® DPDT push-push button switch as installed in the Strat's like the Deluxe Player, Jeff Beck, American Elite Strat® and various other models that use this type push button switching method.

This switch mounting block is attached to the back side of the pickguard with a strong glue such as Devcon 22045. In the location where you are gluing the switch mounting block you will remove a small portion of the pickguard shielding, score the pickguard surface and scuff the mating surface of the switch mounting block for best adhesion. A 11/32" diameter hole in your pickguard is required for this switch mounting block  to allow the switch tip to protrude through. A step bit is a good choice for drilling the hole in the pickguard and the 11/32" is one of the diameters on the 1/8" - 1/2" step bit.

Length: 0.710".
Width: 0.483".
Height: 0.443".

Hole Diameter: 0.343".

Plain Packaged.

Price: $15.00 Each

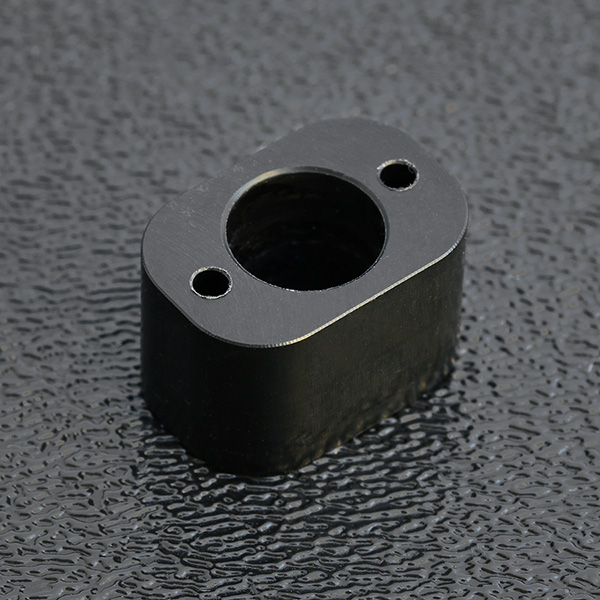

003-8462-000 0038462000 - DPDT Push-Push Switch Mounting Block For Deluxe Player, Jeff Beck and Elite Strat's
Click on above image for larger view
