Item # ACR-2SHB-HSS-PG

Custom Manufactured Black 1 Ply 0.120" Acrylic Pickguard With Rounded And Polished Edge

HSS Pickup Configuration
An OverDrive Custom Guitar Works Exclusive

New for 2017 is our fat Strat® HSS black 1 ply 0.120" Acrylic pickguard with our signature feature of the rounded and polished perimeter edge. This HSS pickguard is designed for a standard Humbucking bridge pickup that uses 2 screws for mounting.

Your everyday typical Strat® pickguard will have a 45° beveled edge that is found on just about any Strat® for the last 50+ years. The rounding and polishing of the perimeter edge of a pickguard gives it a presence and style that really sets it apart from the rest, see photograph below.

These pickguards are the same style found on Gilmour's Black Strat® except these do not have the small slot for the recessed mini-toggle switch and these are for a Humbucker and two single coil pickups.

This pickguards bridge pickup cut-out dimensions are designed around Seymour Duncan's Trembucker design (without a metal cover) which is proper for a tremolo bridge equipped Strat. The bridge pickup mounting uses a standard 2 screw system with a mounting spacing of 3.10".

This pickguards middle and neck pickup cut-outs are dimensioned for standard single coil pickups.

Be sure to confirm your pickups mounting requirements for compatibility with this pickguards specifications before ordering.

This pickguard has a standard 11 hole mounting pattern, the selector switch and single coil pickup mounting holes are not countersunk and require Phillips round head mounting screws. Potentiometer mounting holes are standard 3/8" in diameter. Each pickguard is copper foil shielded in the control region only.

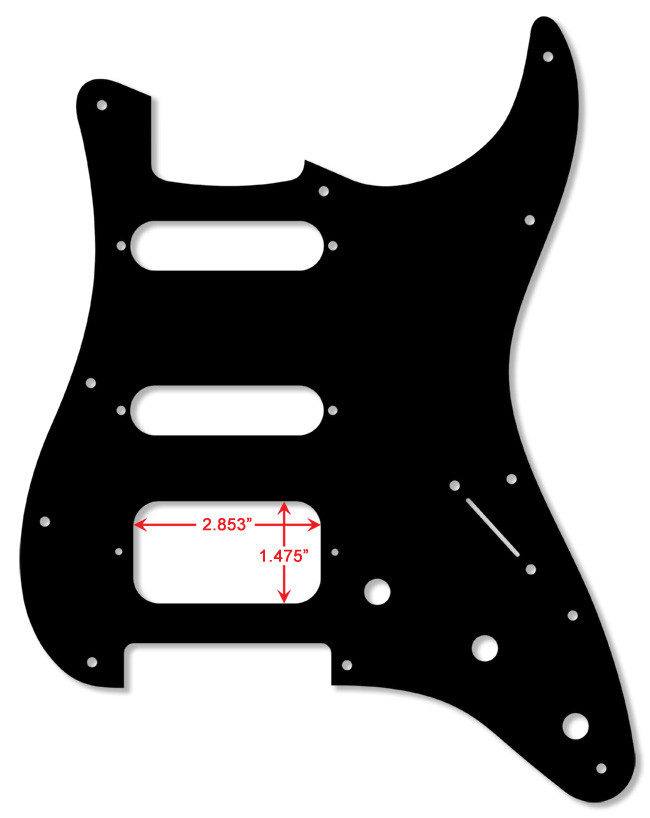

Pickup Mounting Specifications

  • Neck Pickup: Standard. Single Coil
  • Middle Pickup: Standard Single Coil
  • Bridge Pickup Cut-Out: 2.853" x 1.48"
  • Bridge Pickup Mounting: Spacing 3.10"



Each pickguard is custom manufactured on an "As Ordered" basis. There is up to 14 day build time on these pickguards. No returns or exchanges so be sure of your pickups compatibility and mounting requirements before ordering.


Price: $74.00



Black 1 Ply 0.120'' Acrylic HSS Pickguard Rounded Polished Edge

Black 1 Ply 0.120'' Acrylic HSS Pickguard Rounded Polished Edge
Representative illustration of the rounded and polished perimeter edge.

Typical turn-around time from order placement to shipment is up to 14 days.  Holiday work-loads sometimes may increase turn-around time, but keep in mind, we don't waste any time in getting these prepared, packed and shipped on their way to you.

Each pickguard is custom manufactured for each customer and does not qualify for return, exchange or refund.
