Custom Manufactured Black 1 Ply 0.120" Acrylic Pickguard With Rounded And Polished Edge

HH Pickup Configuration
An OverDrive Custom Guitar Works Exclusive

New for 2017 is our double fat Strat® HH black 1 ply 0.120" acrylic pickguard with our signature feature of the rounded and polished edge.

Your everyday typical Strat® pickguard will have a 45° beveled edge that is found on just about any Strat® for the last 50+ years. The rounding and polishing of the perimeter edge of a pickguard gives it a presence and style that really sets it apart from the rest, see photograph below.

These pickguards are the same style found on Gilmour's Black Strat® except these do not have the small slot for the recessed mini-toggle switch and these are for two Humbuckers.

This pickguards bridge pickup cut-out dimensions are designed around Seymour Duncan's Trembucker  design (without a metal cover) which is proper for a tremolo bridge equipped Strat.

This pickguards neck pickup cut-out dimensions are designed around a standard size Humbucker (without a metal cover).

Both pickups utilize a standard 2 screw mounting system with a mounting spacing of 3.10".

Be sure to confirm your pickups mounting requirements for compatibility with this pickguards specifications before ordering.

This pickguard has a standard 11 hole mounting pattern, the selector switch mounting holes are not countersunk and require Phillips round head mounting screws. Potentiometer mounting holes are standard 3/8" in diameter. Each pickguard is copper foil shielded in the control region only.

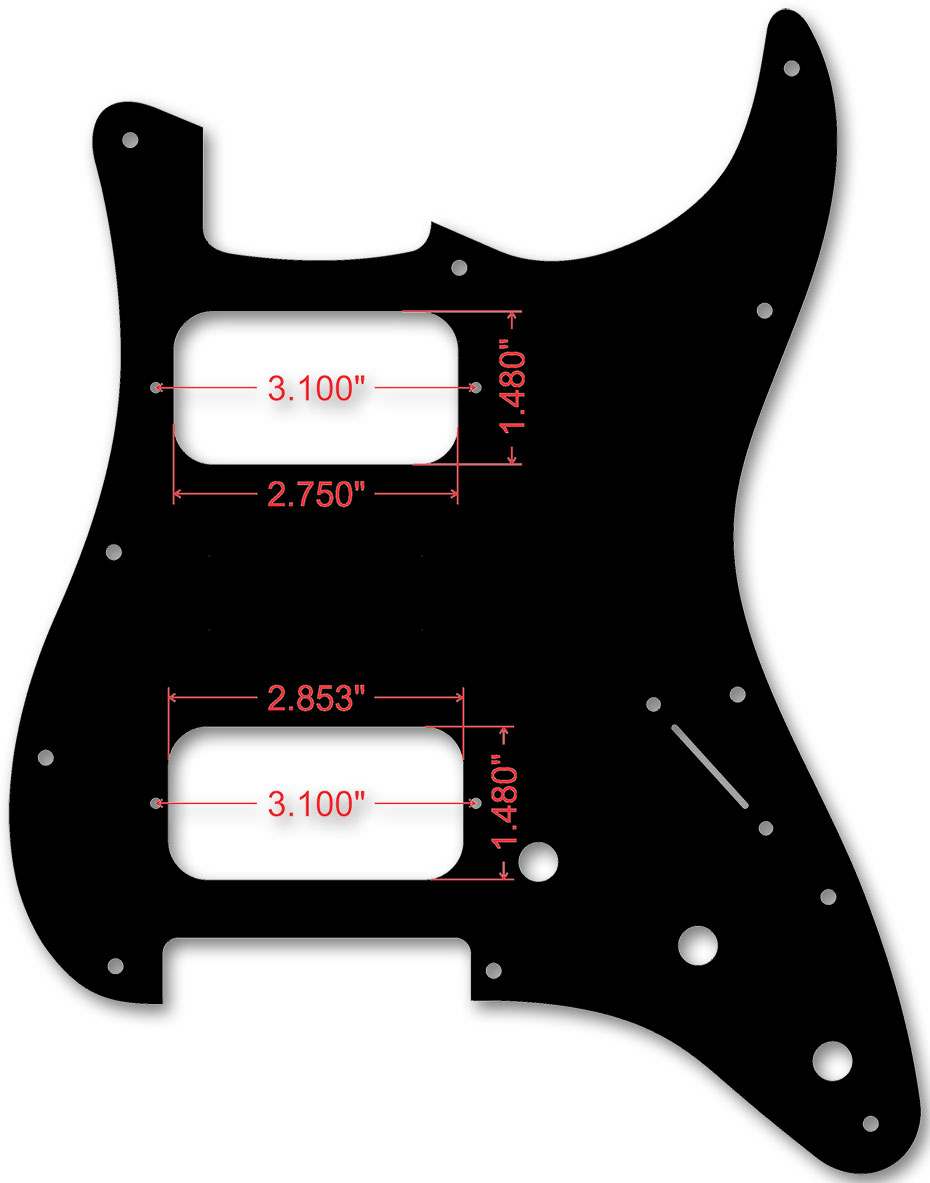

Pickup Mounting Specifications

  • Neck Pickup Cut-Out: 2.75" x 1.48"
  • Bridge Pickup Cut-Out: 2.853" x 1.48"
  • Both Pickups Mounting Spacing: 3.10"


Each pickguard is custom manufactured on an "As Ordered" basis. There is up to 14 day build time on these pickguards. No returns or exchanges so be sure of your pickups compatibility and mounting requirements before ordering.

Price: $80.00


Black 1 Ply 0.120'' Acrylic HH Pickguard Rounded Polished Edge

Black 1 Ply 0.120'' Acrylic HH Pickguard Rounded Polished Edge
Representative illustration of the rounded and polished perimeter edge.

Typical turn-around time from order placement to shipment is up to 14 days.  Holiday work-loads sometimes may increase turn-around time, but keep in mind, we don't waste any time in getting these prepared, packed and shipped on their way to you.

Each pickguard is custom manufactured for each customer and does not qualify for return, exchange or refund.
