 Genuine
U.S.-made Fender Stratocaster® guitar maple neck
features a comfortable “modern C” profile and
9.5” radius rosewood fingerboard with 22 jumbo
frets and rolled edges, large ’70s-style
headstock and pre-slotted synthetic bone nut.
Satin urethane finish for smooth feel.. String tree is not included and its mounting
hole will need to be drilled.
This replacement neck is for a Fender or Squier®
by Fender guitar. Price: $479.99
(USA Shipments Only)
Specifications and Features:
- Fingerboard:
Rosewood
- Number of Frets: 22
- Fret Size: Jumbo
- Neck Shape: Modern
"C"
- Neck Material: Maple
- Neck Finish: Satin
Urethane
- Fingerboard Radius:
9.5" (241 mm)
- Scale Length: 25.5"
(648 mm)
- Nut Material:
Synthetic Bone (Melamine)
- Nut Width: 1.6875"
(42.8 mm)
- Position Inlays:
White Dot
- Truss Rod: 1/8"
Truss Rod Adjustment Nut
-
Standard 4-Bolt Neck Mount
- 6 Pre-Drilled Tuning
Machine Holes with 2-Guide Pin Holes for
Each Tuning Machine
- Each neck is
serialized and stamped during quality
inspection

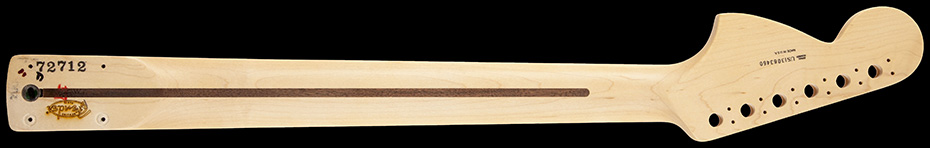

- Walnut "skunk"
stripe on back of neck
- Dual string tree
design
- Fender® Logo Decal
includes "Made in USA" and "Original Contour
Body"
Each nut is pre-slotted with “pilot” string
location grooves to make spacing a breeze when
performing the final string slot filing. (Please
note: Final string slot filing and nut shaping
modification is required to ensure proper fit
and performance.)
Measurements:
- Peg Hole Diameter -
.404” (10.26 mm)
- Headstock Thickness
- .540” (13.71 mm)
- Thickness at the 1st
Fret - .820” (20.82 mm)
- Thickness at the
12th Fret - .870” (22.09 mm)
Recommended
Tuning Machines:
Recommended String Trees:
099-4911-000
or 003-9475-049.
|
