Item #099-3002-921

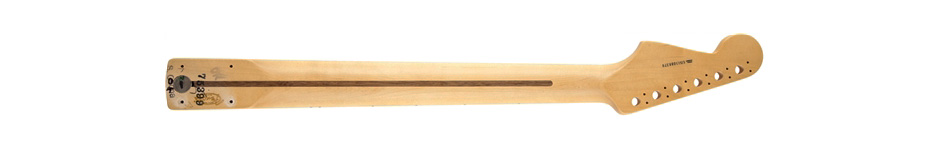

Genuine Fender® USA Strat® Replacement Neck
22 Medium Jumbo Frets, Maple Fingerboard, 9.5" Radius

099-3002-921  0993002921 - Fender Stratocaster maple Neck 22 Medium Jumbo Frets 9.5'' Radius

099-3002-921  0993002921 - Fender Stratocaster maple Neck 22 Medium Jumbo Frets 9.5'' RadiusGenuine U.S.-made Fender Stratocaster® guitar maple neck features a comfortable “modern C” profile and 9.5”-radius maple fingerboard with 22 medium jumbo frets and rolled edges. Also includes Bi-Flex™ truss rod and pre-slotted synthetic bone nut. Tinted satin urethane finish on back for smooth feel, with gloss finish on maple fingerboard and headstock face.  String tree is not included and its mounting hole will need to be drilled.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks

This replacement neck is for a Fender or Squier® by Fender guitar.

We only have one of these necks available, once it is sold there won't be any more. This particular neck is brand new, 2013 manufacture date/serial#.

Price: $549.99 (USA Shipments Only)


SOLD OUT

Specifications and Features:

  • Fingerboard: Maple
  • Number of Frets: 22
  • Fret Size: Medium Jumbo
  • Neck Shape: Modern "C"
  • Neck Material: Maple
  • Neck Finish: Satin Urethane on Back of Neck, Gloss on Face of Headstock
  • Fingerboard Radius: 9.5" (241 mm)
  • Scale Length: 25.5" (648 mm)
  • Nut Material: Synthetic Bone (Melamine)
  • Nut Width: 1.685" (42.8 mm)
  • Position Inlays: Black Dot
  • Truss Rod: Bi-Flex™ Design with 1/8" Truss Rod Adjustment Nut
  • Built-In Micro Tilt™ Neck Adjustment System
  • 6 Pre-Drilled Tuning Machine Holes with 2-Guide Pin Holes for Each Tuning Machine
  • Each neck is serialized and stamped during quality inspection
  • Walnut "skunk" stripe on back of neck
  • Fender® Logo Decal includes "Made in USA" and "Original Contour Body"

Each nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)

Measurements:

Peg Hole Diameter - .404” (10.26 mm)
Headstock Thickness - .540” (13.71 mm)
Thickness at the 1st Fret - .820” (20.82 mm)
Thickness at the 12th Fret - .870” (22.09 mm)

Recommended Tuning Machines:

Suggested components you may also need: Neck Mounting Screws a Neck Mounting Plate and a String Tree.

099-3002-921, 0993002921 - Fender Stratocaster maple Neck 22 Medium Jumbo Frets 9.5'' Radius

099-3002-921, 0993002921 - Fender Stratocaster maple Neck 22 Medium Jumbo Frets 9.5'' Radius
