Item # 007-8776-000C

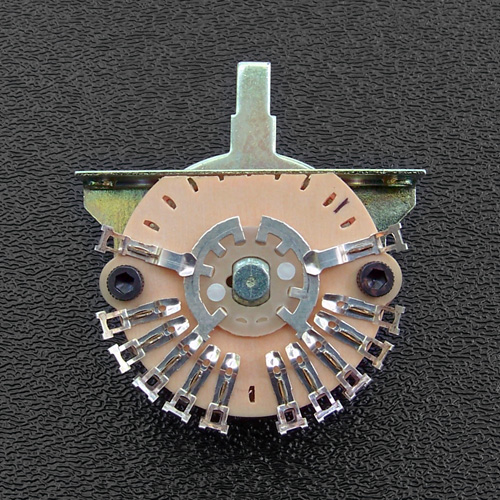

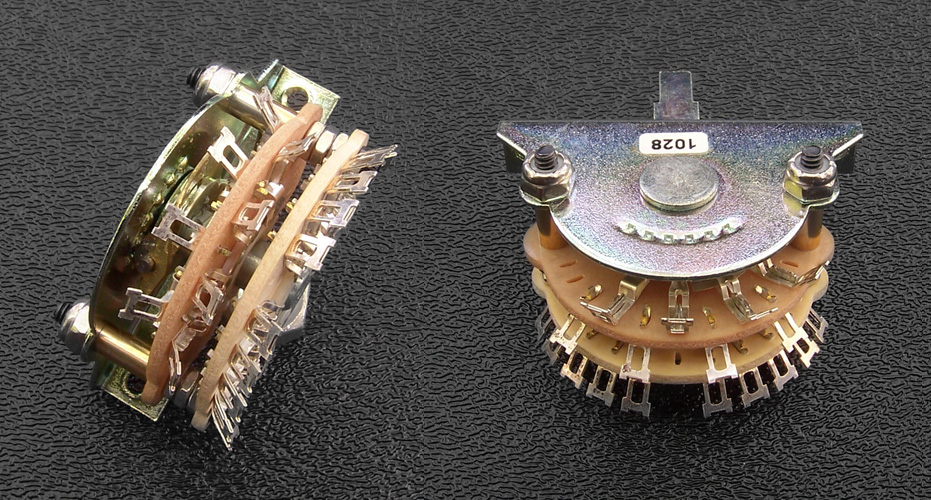

 Custom Built 5 Position 4 Pole Discrete Pickup Selector Switch

Custom built 5 position 4 pole discrete pickup selector switch. Used on American Deluxe, Pro, Elite and Ultra HSS Stratocasters® that typically feature an S1 system.

We are custom building these switches specifically for those who want to build and wire their own Strat® pickguard assembly based on the above described model Strat's®.

Each switch is tested after construction to certify 100% correct operation. These custom built switches do not qualify for return, exchange or refund.

Does not include mounting screws or switch tip.

Plain Packaged.

Support Documents (list may not represent all applications)

  • 2011 and newer American Deluxe Strat® service/wiring diagram available here.

  • 2014 and newer American Standard HSS Strat® with the Shawbucker and two Fat 50's.  Service/wiring diagram available here.

  • 2016 and newer American Elite Strat® service/wiring diagram available here.

  • 2017 American Professional HSS Strat service/wiring diagram available here.

Price: $48.00 Each

It may take us up to 28 days to build your switch.

007-8776-000 - Custom Built Discrete/Com 5-Way Selector Switch
