We custom build each of these complete Strat® pickguard
assemblies in our shop by hand for every customer based on the unique
specifications selected below.
Includes everything ready to
drop in to your favorite Strat® by simply
hooking up the hot wire (audio) and ground
wires. Includes Fender's new Pure Vintage
'57 Stratocaster® Pickup Set, genuine
Fender® pickguard, knobs, switch tip along with
top quality CTS potentiometers, Orange
Drop polyester film tone
capacitors and a CRL pickup selector switch.
The standard 11 hole
pickguards are fully aluminum foil shielded as they come from
Fender,
click for illustration.
The
'56/'59, '57, '62 and '65 vintage pickguards
require a separate aluminum pickguard shield
which is to be added extra if so desired. Use
separate "Add to Cart" buttons found below for
addition of these pickguard shields.
We offer a few assembly selection
options for your pickguard to appeal to your
particular Strat® body color.
Pickguard Assembly Specifications /
Options
Pickguard Selection Options:
Standard 11 Hole, 3 Ply
Black (B/W/B)
Standard 11 Hole, 3 Ply White
(W/B/W)
Standard 11 Hole, 3 Ply
Parchment (P/B/P)
Standard 11 Hole, 3 Ply Mint
Green (M/B/M)
Standard 11 Hole, 1 Ply Solid
Black
'65 Vintage 11 Hole, 3 Ply Eggshell, (E/B/E)
'62 Vintage 11 Hole, 3 Ply Black
(B/W/B)
'62 Vintage 11 Hole, 3 Ply White
(W/B/W)
'62 Vintage 11 Hole, 3 Ply Mint
Green (M/B/M)
'57 Vintage 8 Hole, 1 Ply White
'57 Vintage 8 Hole, 3 Ply Black
(B/W/B)
'56/'59 Vintage 8 Hole, 1 Ply
Eggshell
Pickup Set: Genuine Fender® Pure Vintage '57 Strat.
Pickup Selector Switch Options:
CRL 5-Way.
CRL 3-Way.
Potentiometers: Three 250K CTS Audio
Taper.
Tone Capacitor: Orange Drop
Polyester Film Capacitor Options. Here is a link to a video that explains How Tone Capacitors Work.
0.047 uF
0.033 uF
0.022 uF
0.1 uF
Control Knobs/Switch Tip/Pickup
Covers Color Options:
White
Parchment
Vintage White
Aged White
Black
Pickup Tone Controls:With standard Strat® wiring the bridge pickup does
not have a tone control, only the middle and neck
pickups have a tone control. However, we offer
5 alternate pickup
tone control selections to choose from to enhance
your tonal shaping.
Standard Strat® wiring: Separate
tone control for the middle pickup. Separate
tone control for the neck pickup. No tone
control for the bridge pickup.
Separate tone control for
the bridge pickup. Middle and neck pickups
share a tone control.
Separate tone control for
the neck pickup. Bridge and middle pickups share
a tone control.
Separate tone control for the
bridge pickup. Separate tone control for the
neck pickup. No tone control for the middle
pickup.
Separate tone control for
the bridge pickup. Separate tone control for the
middle pickup. No tone control for the neck
pickup.

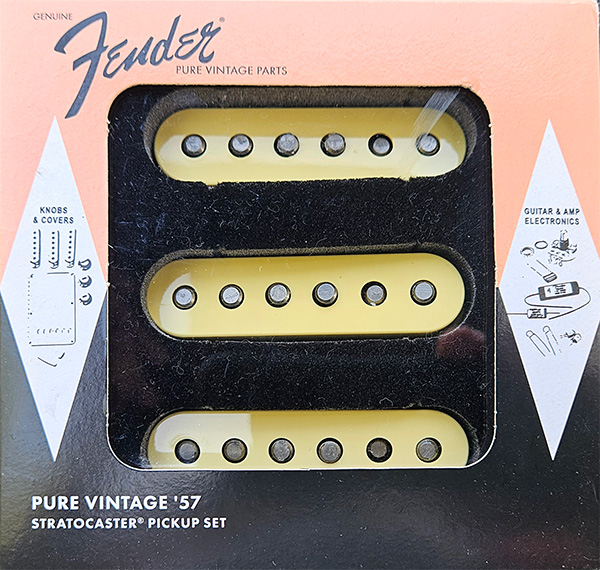

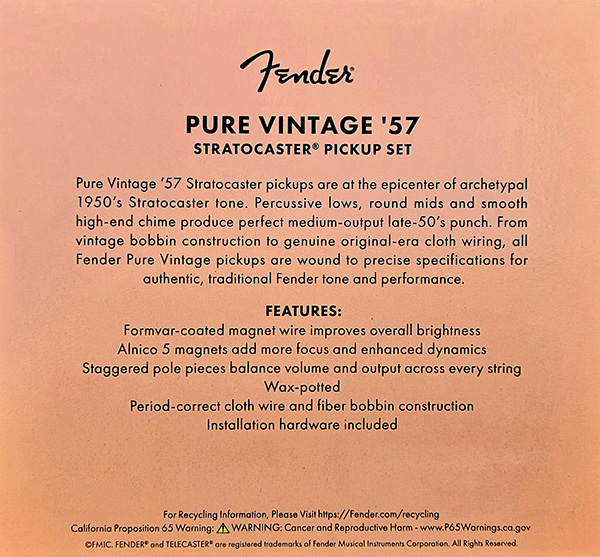

Pure Vintage '57
Stratocaster pickups are at the epicenter of
archetypal 1950's Stratocaster tone.
Percussive lows, round mids and smooth
high-end chime produce perfect medium-output
late-50's punch. From vintage bobbin
construction to genuine original-era cloth
wiring, all Fender Pure Vintage pickups are
wound to precise specifications for
authentic, traditional Fender tone and
performance.\
Alnico 5
magnets add more focus and enhanced
dynamics.
Staggered pole
pieces balance volume and output across
every string.
Wax-potted.
Period-correct
cloth wire and fiber bobbin
construction.
Installation
hardware included.
Representative photograph. '57 vintage, 1
ply, 8 hole pickguard, with aged white accessories.
Representative photograph of a completed
pickguard assembly. Does not depict actual
pickup set being offered here. Shown as a
similar product representation as a completed
assembly may appear.
Representative photograph of controls wiring.
Important Note: If you are
selecting your pickguard assembly to be built
with one of the '56/'59, '57, '62 or '65 vintage pickguards they are unshielded as
provided by Fender. To have the genuine Fender®
full coverage aluminum pickguard shielding plate or '57 control
area aluminum shielding plate installed please add it separately
below using the appropriate "Add to Cart"
button.
These separate aluminum shielding plates are specific and authentic to
how Fender was shielding their pickguard
assemblies during the '50s and early to mid
60's. The '57 pickguard typically will
have the control area aluminum shielding plate
installed, the '62 and '65 pickguard typically
will have the full coverage aluminum shielding
plate installed.
Select Your Pickguard Assembly Options
Accessories Color:
Pickup Selector
Switch:
Tone Capacitor:
Pickup(s) Tone Controls:
Body Ground
Connection:
Price: $305.00
Use the following "Add On" options for
upgrades to the basic pickguard assembly.
IMPORTANT INFORMATION ABOUT OUR CUSTOM BUILT COMPLETE PICKGUARD ASSEMBLIES
Typical turn-around time from order placement until your complete pickguard assembly will be ready to ship is up to 45 days.
All custom built pickguard assemblies sales are final. No returns, refunds or exchanges due to the unique nature of the customized options you select for your particular assembly. Each pickguard assembly is custom built on an "As Ordered" basis for each customer with your specific and unique assembly options selected at the time of purchase. All pickguard assemblies are completely tested to ensure 100% correct operation.
