Item #099-4602-921 Genuine Fender® Strat® Replacement Neck
21 Medium Jumbo Frets, Maple Fingerboard, 9.5" Radius

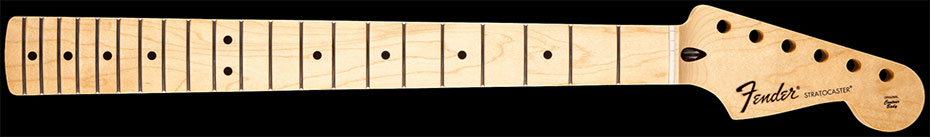

099-4602-921 Genuine Fender Replacement Neck 21 Medium Jumbo Frets, Maple Fingerboard, 9.5" RadiusCrafted at Fender’s Ensenada, Mexico, manufacturing facility, this genuine Fender Stratocaster® guitar maple neck features a comfortable “modern C” profile and 9.5”-radius maple fingerboard with 21 medium jumbo frets. Also includes standard truss rod and the nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing. String tree is not included and its mounting hole will need to be drilled. Tinted satin urethane finish on back for smooth feel, with gloss finish on maple fingerboard and headstock face. This replacement neck is for a Fender or Squier® by Fender guitar.

Price: $199.99 (USA Shipments Only)

Specifications and Features:

  • Fingerboard: Maple
  • Number of Frets: 21
  • Fret Size: Medium Jumbo
  • Neck Shape: Modern "C"
  • Neck Material: Maple
  • Neck Finish: Satin Urethane on Back of Neck, Gloss on Face of Headstock and Fingerboard
  • Fingerboard Radius: 9.5" (241 mm)
  • Scale Length: 25.5" (648 mm)
  • Nut Material: Synthetic Bone (Melamine)
  • Nut Width: 1.650" (42 mm)
  • Position Inlays: Black Dot
  • 3/16" Truss Rod Adjustment Nut (At Headstock)
  • 6 Pre-Drilled Tuning Machine Holes with 2-Guide Pin Holes for Each Tuning Machine
  • Each neck is serialized and stamped during quality inspection

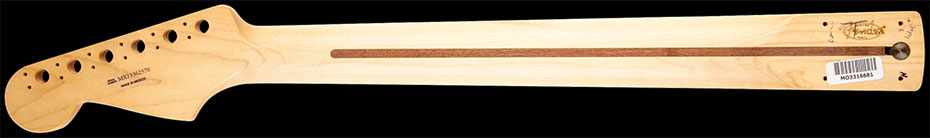

  • Walnut "skunk" stripe on back of neck
  • "Fender® Stratocaster" Logo Decal
Each nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance).

Measurements:
  • Peg Hole Diameter - .397” (10.08 mm)
  • Headstock Thickness - .540” (13.71 mm)
  • Thickness at the 1st Fret - .820” (20.82 mm)
  • Thickness at the 12th Fret - .870” (22.09 mm)
Recommended Tuning Machines:

Recommended String Trees: 099-2083-000 or 099-4910-000

099-4602-921 Genuine Fender Replacement Neck 21 Medium Jumbo Frets, Maple Fingerboard, 9.5" Radius
